Short answer: A useful biomass fuel specification must define more than the type of residue. It should set a tested operating range for moisture, ash, particle size, energy content, bulk density and contaminants. The acceptable limits depend on the selected plant. There is no universal specification that works for every gasifier, furnace or boiler.
"Wood chip", "rice husk" and "palm residue" are feedstock names. They are not engineering specifications.
A supplier may deliver the same named material from two sites and produce completely different plant behaviour. One load flows evenly and converts cleanly. Another bridges in the hopper, carries wet soil, forms slag or causes the gas-cleaning system to work beyond its design point.
Fuel quality affects output, emissions, maintenance and availability. It should be treated with the same discipline as any other major plant input.
- Representative samplingIncrements across piles and suppliers
- Laboratory testingMoisture, ash, chemistry, energy
- Handling and conversion trialsFlow, feeding and reaction
- Design fuel envelopeNormal range and limits
- Delivery QA and rejection rulesChecked on every load
The six properties that matter most
1. Moisture content
Moisture is usually the first number buyers discuss because it affects almost everything else.
Water adds transport weight and occupies storage volume without adding energy. Inside the plant, part of the fuel's energy is used to heat and evaporate it. As moisture rises, the net calorific value per delivered tonne falls.
IEA Bioenergy gives a broad example for wood chips of about 30 to 45 percent moisture by weight and 9 to 12 MJ/kg calorific value. That range is useful for understanding the relationship, but it is not a gasifier specification.
Some systems are designed for relatively wet fuel. Others need drying to achieve stable gas quality or engine performance. The limit must come from the selected reactor and the full energy balance.
Always state the measurement basis:
- Wet basis: water as a percentage of total wet mass.
- Dry basis: water as a percentage of dry solid mass.
Most commercial fuel discussions use wet basis. Confusing the two can create a serious design error.
2. Ash content and chemistry
Ash is the non-combustible mineral fraction left after conversion. More ash generally means less fuel energy per tonne and more material to remove.
The percentage alone is not enough. Ash chemistry and melting behaviour determine whether it remains manageable or creates slagging, fouling and corrosion.
Agricultural residues can contain silica, potassium, sodium, chlorine and other compounds at levels very different from clean stem wood. Rice husk, straw and empty fruit bunches cannot be treated as interchangeable fuels simply because all three are biomass.
A fuel assessment should consider:
- total ash on a dry basis;
- ash-fusion temperatures;
- alkali metals;
- chlorine and sulphur;
- soil and sand introduced during harvesting or storage;
- the intended use or disposal route for ash and char.
3. Particle size and shape
Particle size controls how fuel moves, dries and reacts.
Oversize pieces can block screws, valves and conveyors. Too many fines can create dust, uneven airflow, rapid reaction, carryover and explosion risk. Long fibrous material can bridge over a hopper even when its average measured size appears acceptable.
A good specification therefore includes:
- minimum and maximum dimensions;
- an acceptable size distribution;
- a maximum fines fraction;
- limits on long pieces or stringy material;
- the required shape after chipping, shredding or pelletising.
The correct range is reactor-specific. A fixed-bed gasifier, fluidised bed, suspension burner and moving-grate furnace each want a different fuel.
4. Net calorific value
Net calorific value, sometimes called lower heating value, measures usable heat after accounting for water remaining as vapour.
This is the figure most closely connected to tonnes consumed per MWh. It changes with moisture and ash, so a single dry-fuel value should not be applied to every delivered load.
A commercial fuel agreement can use a minimum net calorific value, a moisture-adjusted price, or both. This aligns payment with usable energy rather than tonnes of water and inert material.

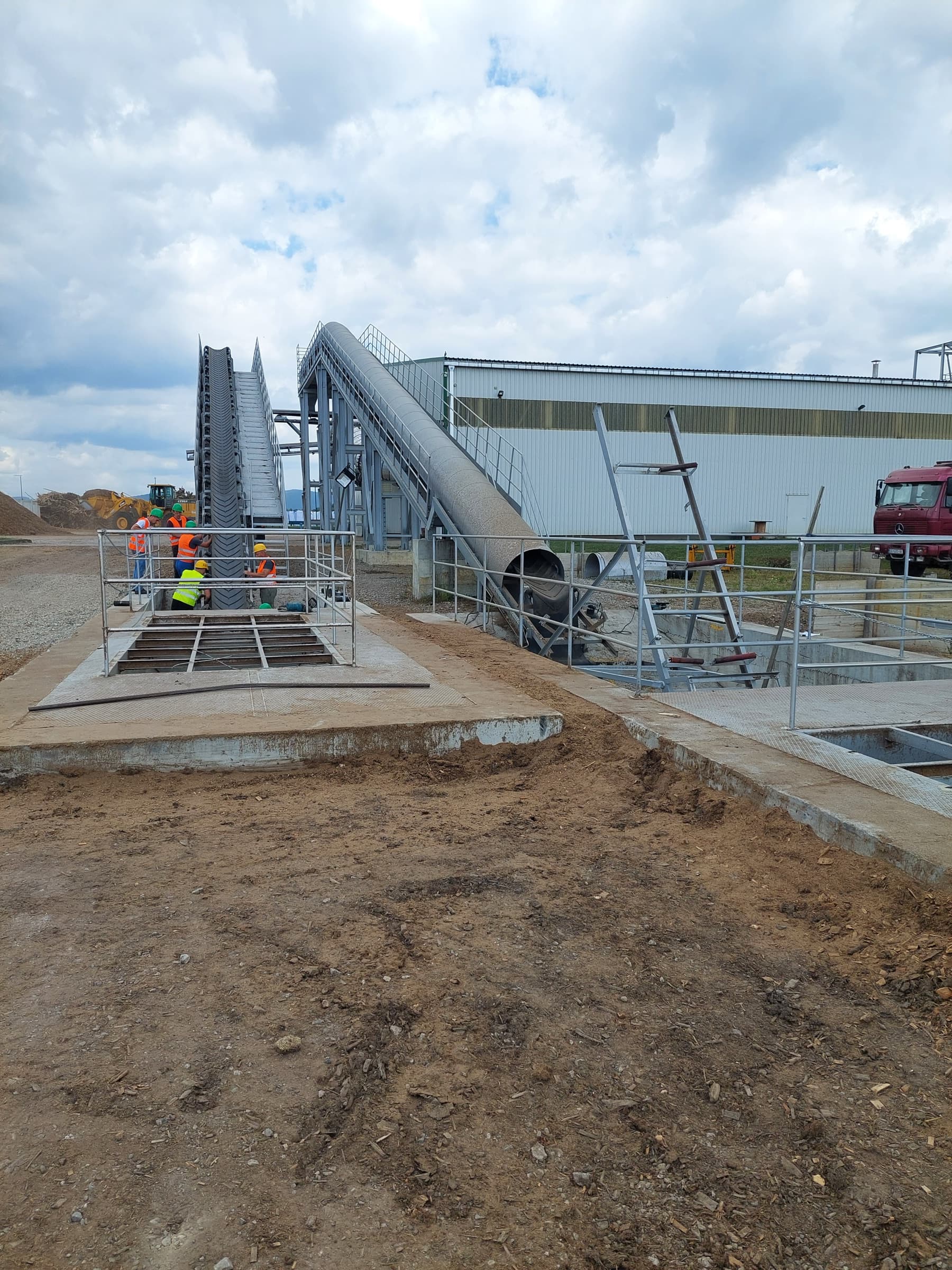

5. Bulk density and flow behaviour
A tonne of dense shell occupies much less space than a tonne of loose straw.
Bulk density affects:
- truck and container utilisation;
- storage building size;
- live-bottom and hopper design;
- conveyor capacity;
- the number of daily deliveries;
- fire-management and stock-rotation procedures.
Flow behaviour also changes with moisture, particle shape and compaction. Laboratory energy results alone will not show whether a fuel bridges, rat-holes or separates during handling.
6. Contaminants
Metals, stones, glass, plastic, treated timber and soil can damage equipment or change the environmental classification of outputs.
A practical specification should identify prohibited materials and define:
- the sampling method;
- rejection thresholds;
- who pays for rejected loads;
- whether the fuel can be reprocessed;
- how repeated non-conformance is handled.
For waste-derived biomass, chain of custody and source control are just as important as laboratory results.
A buyer's fuel-specification table
| Property | Why it matters | How to control it |
|---|---|---|
| Moisture | Energy yield, stability, storage and transport | Drying, covered storage, blending and routine testing |
| Ash percentage | Energy dilution and residue volume | Clean harvesting, screening and source selection |
| Ash chemistry | Slagging, fouling and corrosion | Laboratory analysis, blending and reactor selection |
| Particle-size distribution | Feeding, airflow, reaction and dust | Chipping, shredding, screening and fines removal |
| Net calorific value | Fuel consumption and delivered energy cost | Moisture control and energy-based pricing |
| Bulk density | Transport, storage and feed-system capacity | Densification, sizing and logistics design |
| Contaminants | Damage, emissions and product classification | Source control, magnets, screens and rejection rules |
One sample is not enough
Feedstock varies across fields, suppliers, seasons and storage methods. A single grab sample taken from the top of a dry pile can give false confidence.
A credible qualification programme should include:
- A written sampling plan.
- Multiple increments taken across the pile or delivery.
- Composite samples representing normal operations.
- Separate sampling during wet and dry seasons.
- Tests from more than one supplier where blending is proposed.
- Clear chain of custody to the laboratory.
- Repeated testing as the project moves from feasibility to operation.
For a new project, CNP wants to understand both the average fuel and the extremes. The plant must operate through the agreed range, not only at the average. Our guide to assessing biomass feedstock for onsite power covers the wider supply questions.
Build a design fuel envelope
The final engineering document should describe a fuel envelope rather than one perfect number.
It may include:
- normal operating range;
- short-duration maximum and minimum;
- absolute rejection limit;
- blending rules;
- required preparation equipment;
- performance adjustments outside the reference condition.
This creates a clear link between the fuel supplier, plant designer, performance guarantee and operator.
If the equipment supplier guarantees output at 15 percent moisture but the commercial fuel contract allows 35 percent, the project has a gap that will eventually become an argument.
Put quality assurance into operations
Fuel testing should continue after commissioning.
A practical operating system may use:
- weighbridge records for every load;
- rapid moisture checks at delivery;
- periodic accredited-laboratory analysis;
- retained samples for disputes;
- visual inspections and photography;
- supplier scorecards;
- trend analysis against output, emissions and maintenance.
The goal is not to reject fuel for minor variation. It is to identify changes early enough to blend, dry, screen or adjust the plant before availability suffers.
The practical answer
Do not ask, "Can your plant use wood waste?"
Ask, "Can your plant operate at the guaranteed net output and emissions across this measured range of moisture, ash, size, chemistry and contamination?"
That question produces a useful engineering answer. For how the fuel is converted, see biomass gasification explained. Sawmills and panel plants can start with our forestry and wood processing page.
CNP assesses the fuel before fixing the plant configuration. If your site produces a consistent agricultural or forestry residue, send us recent laboratory data and monthly volumes for an initial review.
